WRAP
Width
106 in.
(2.70 meters)
106 in.
(2.70 meters)
Wrap identification
Each TamaWrap® has a unique serial number, located on the metallic label of the wrap.
Radio Frequency IDentification (RFID):
Every TamaWrap® includes RFID tags to provide the capability to track the individual module through harvesting and processing, all integrated with the electronic systems of the JD On Board Module cotton pickers.
Length
69 ft.
(21 meters)
69 ft.
(21 meters)
The TamaWrap® Z-LOCK® wrap portion concept:
TamaWrap® is made of pre-cut wrap portions in order to eliminate the potential of plastic fragments.
The Z-LOCK® system connects and separates each individual portion on a roll, so the roll is made from 24 “ready to use” portions.
The Z-LOCK® system assures the next portion is ready to be fed correctly.
The Z-LOCK® system connects and separates each individual portion on a roll, so the roll is made from 24 “ready to use” portions.
The Z-LOCK® system assures the next portion is ready to be fed correctly.

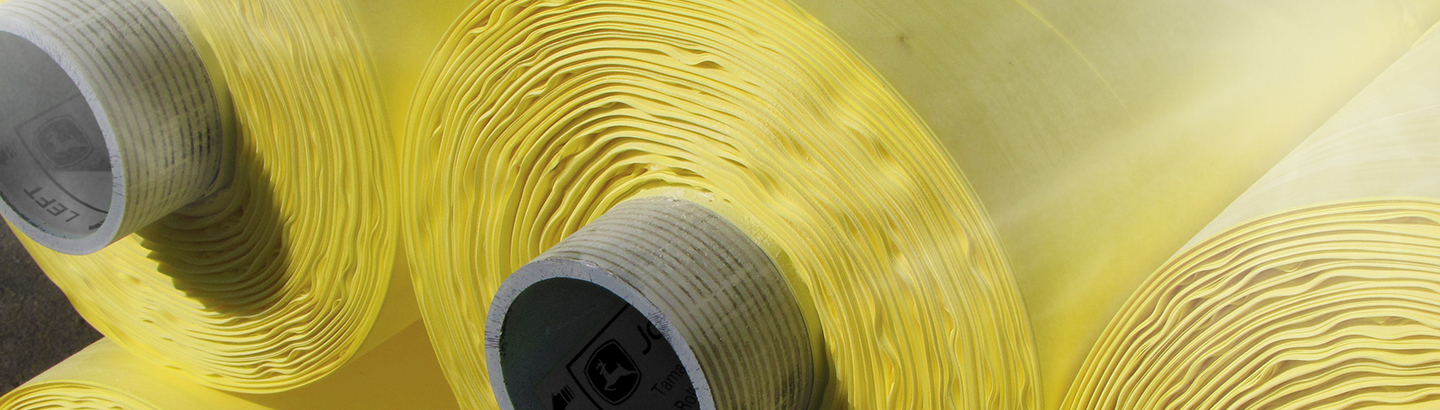

ROLL
24 wraps per roll
Identification:
Each roll has its own ID number located inside the core, and on the leading edge of the 1st TamaWrap®.
Plastic core:
Every core is marked on its left hand side, to assist correct installation:
⋅ black dots or blue stripe on the core.
⋅ a label inside the core.
⋅ black dots or blue stripe on the core.
⋅ a label inside the core.
Weight
approx.
220 lbs
(100 kg)
approx.
220 lbs
(100 kg)
Width
9 ft. 2 in.
(2.8 meters)
9 ft. 2 in.
(2.8 meters)
Diameter
10 in.
(25 cm)
10 in.
(25 cm)
PALLET
9 rolls per pallet
216 wraps per pallet
216 wraps per pallet
Weight
2095 lbs
(950 kg)
2095 lbs
(950 kg)
Height
2 ft. 8 in.
(85 cm)
2 ft. 8 in.
(85 cm)
Length
9 ft. 3 in.
(2.85 meters)
9 ft. 3 in.
(2.85 meters)
Width
2 ft. 3 in.
(72 cm)
2 ft. 3 in.
(72 cm)
The TamaWrap® with Z-LOCK® wrap portion is a patented product:
U.S. Patent No. 6,787,209 ; U.S. Patent No. 7,541,080 ; Australian Patent No. 2005300259 ; Australian Patent No. 2003292463 ; China Patent No. ZL200380100224.X ; China patent No. ZL200580020614.5 ; Turkish patent No. TR2006 07638B ; Israel patent No. 180527 ; Israel patent no. 163215 ; Brazil patent No. PI0307327-0 ; India patent No. 254696 ; South Africa patent No. 2006/09928 ; South Africa patent No. 2004/5937 ; Argentina patent No. AR043323B1
